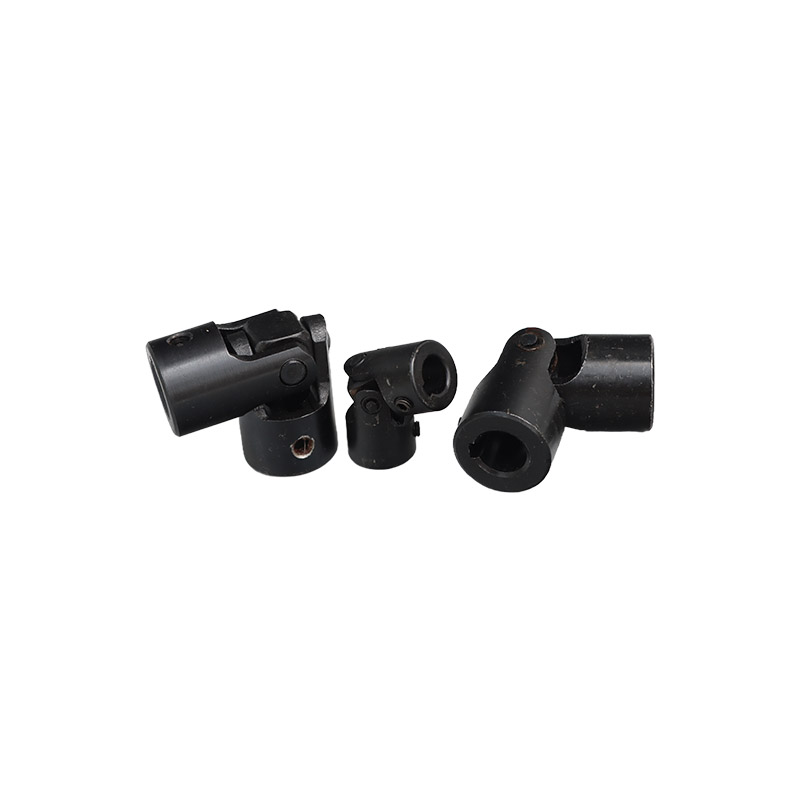

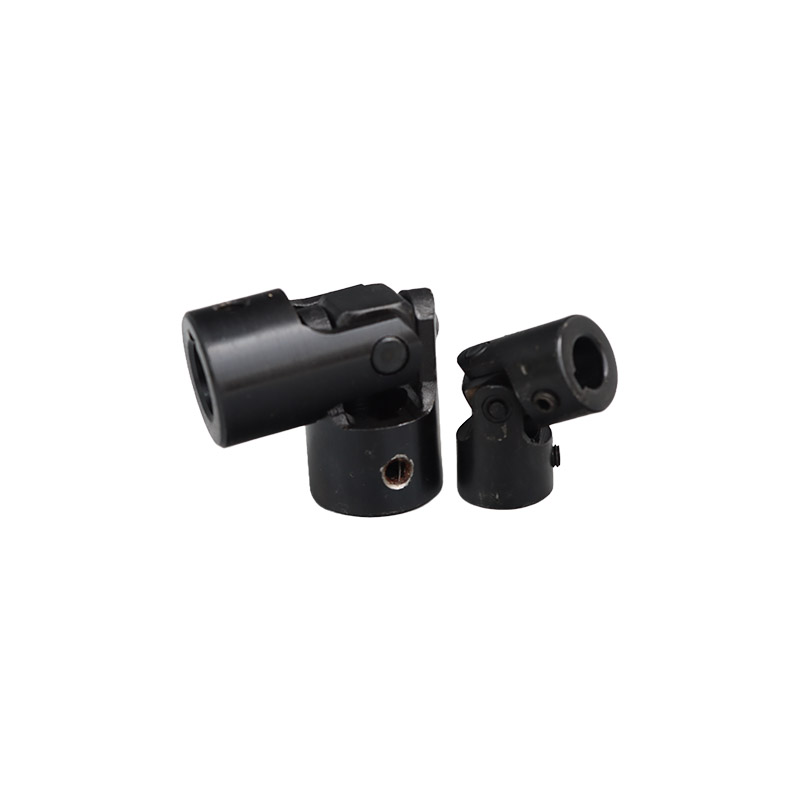

Hexagonal Universal Joint Connector
Hexagonal Universal Joint Connector is a universal transmission device that utilizes a hexagonal drive structure. It transmits torque through the engagement of a hexagonal core shaft and sleeve, leveraging the multi-directional freedom of the articulated points to achieve angular deflection compensation of ±30°. This design combines the sliding characteristics of slider couplings with the angular compensation capability of universal joints.
Manufactured from high-strength alloy steel with surface carburizing and quenching treatment, it achieves a hardness of HRC 58-62 and a torque capacity of up to 5000 Nm. It supports maximum operating speeds of 2500 rpm and requires regular lubrication maintenance. Due to slight reciprocating motion during operation, it is not suitable for high-precision synchronous transmission applications.
Widely used in agricultural machinery, engineering vehicles, industrial robots, and other medium-to-low speed heavy-duty transmission systems with significant angular misalignments, it is particularly suitable for harsh operating conditions with adequate lubrication.
