Product introduction

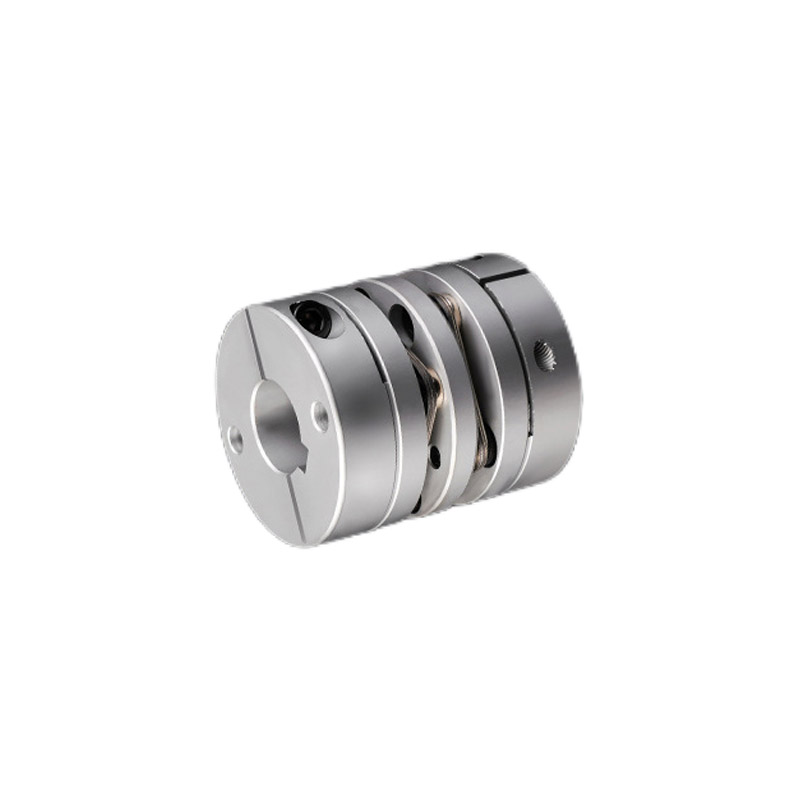

Double Diaphragm Clamping CouplingFeaturesUltra low inertia, high sensitivity, s
Coupling

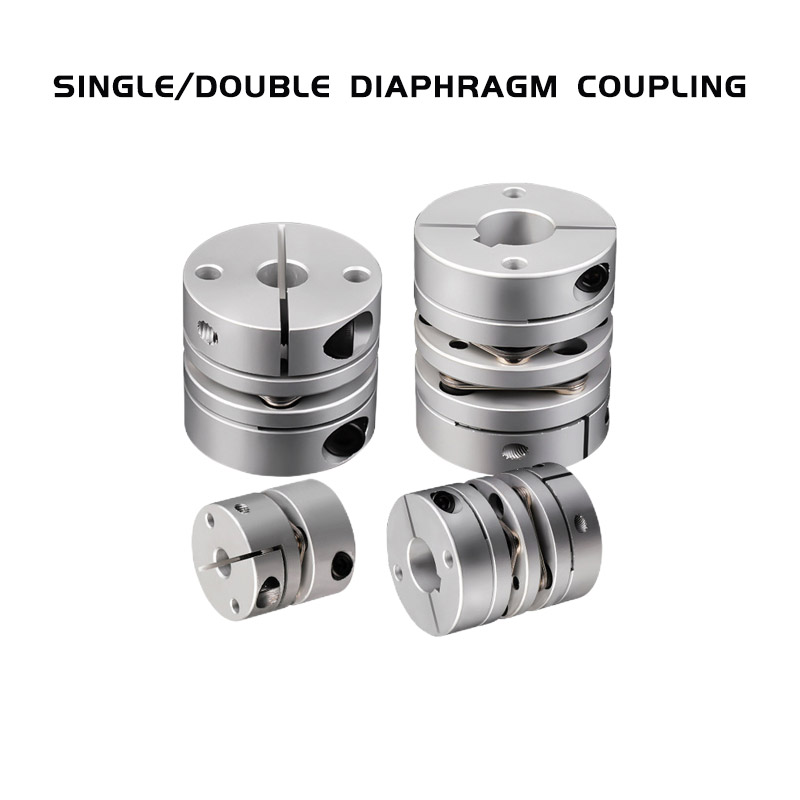

The double diaphragm clamping coupling utilizes two parallel stainless steel diaphragm sets and achieves keyless locking through tapered clamping sleeves, ensuring zero-backlash transmission. It offers a torque capacity of 50,000 Nm, speeds up to 12,000 rpm, and compensates for angular (±1°), radial (±0.5 mm), and axial (±2 mm) misalignments. With high torsional stiffness (>10,000 N·m/rad) and fatigue resistance, its all-metal structure withstands high temperatures (-50°C to +300°C) and requires no maintenance. Widely used in wind power generation, marine propulsion, high-speed compressors, and other heavy-duty applications, it is a core component of high-end industrial drive systems.
